Lincoln Electric

Reconditioned

30 in stock

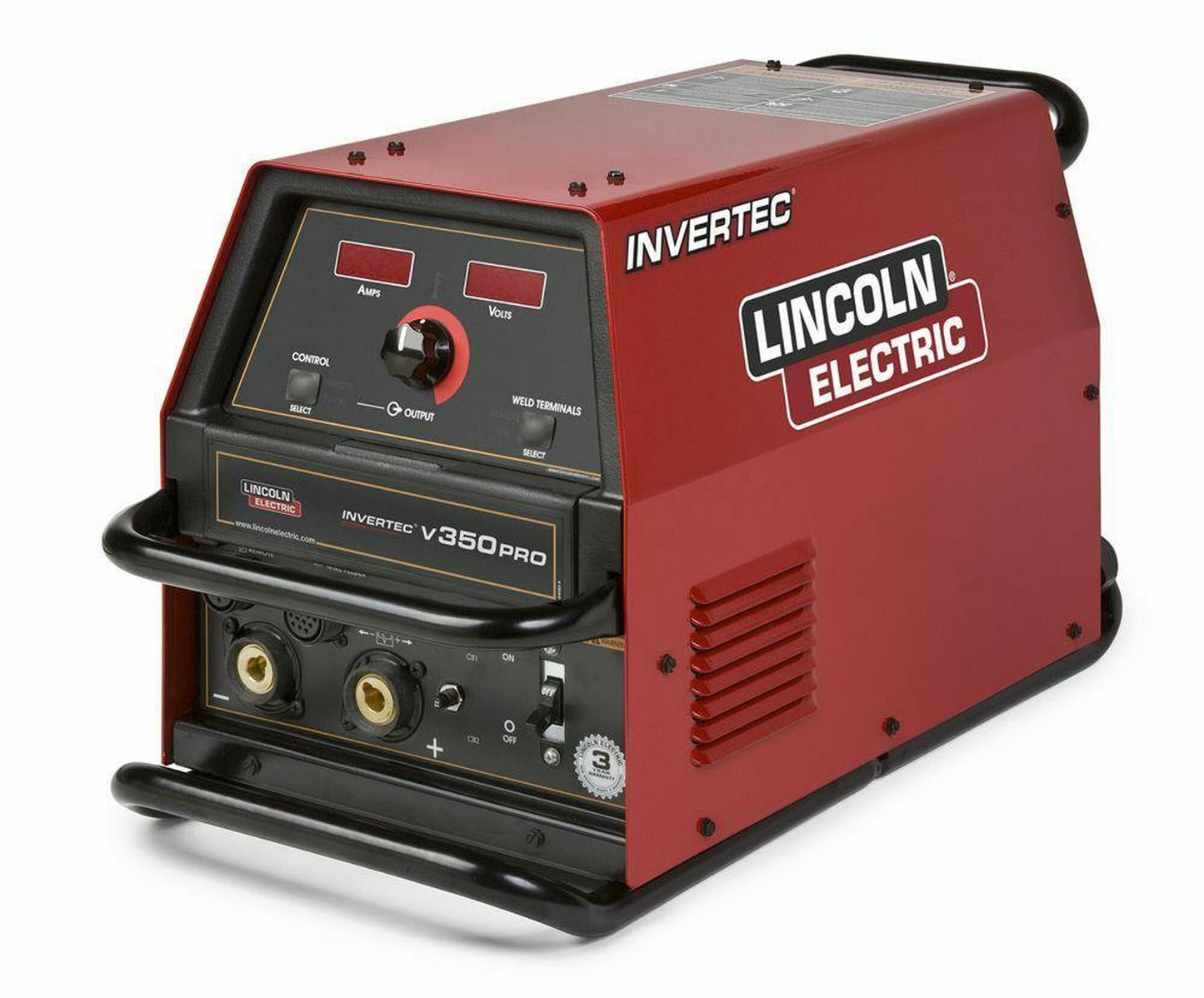

Lincoln Invertec V350 PRO K2667-2 6Pk - Reconditioned with One year Warranty

Description:

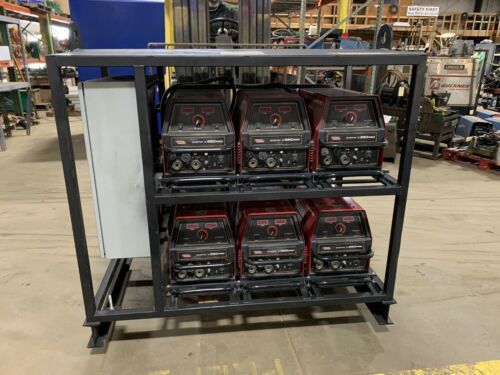

Lincoln Electric's rack systems offer a portable, industrial-grade solution for grouping multiple Invertec V350-PRO power sources with Tweco output connections. These compact racks are constructed from heavy gauge square tubular steel for long-lasting durability and feature the multiprocess Invertec® V350-PRO Factory model in 4 or 6-pack configurations. The racks are unique in the market, featuring weather-resistant IP23S-rated power sources and a convenient standard main disconnect switch, allowing for a single primary power drop connection. The power sources are factory-installed and wired to the main power distribution panel, ensuring compliance with the National Electrical Code (NEC). The system includes a 200 amp, 600 volt, 3 phase main disconnect switch, and individual fuses for overcurrent protection of each power source. Standard length input cables allow the power sources to be placed in any position on the rack, while two overhead lifting eyes, two fork lift slots, and four heavy-duty optional casters provide easy portability.

Input Power: 200/230/380-415/460/575/3/50 50/60 60

Rated Output: 350A/34V/40%

Input Current: 171/90/76A

Output Range: 5-425A DC

Dimensions: 60 in x 59 in x 33.5 in (1524 mm x 1499 mm x 851 mm)

Shipping Weight: 1015.0 lb
