Lincoln Electric K52101-1 Helix M85 Weld Head - Reconditioned

Lincoln Electric K52101-1 Helix M85 Weld Head - Reconditioned

Regular price $26,730.00 CAD
Regular price $38,184.00 CAD Sale price $26,730.00 CAD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

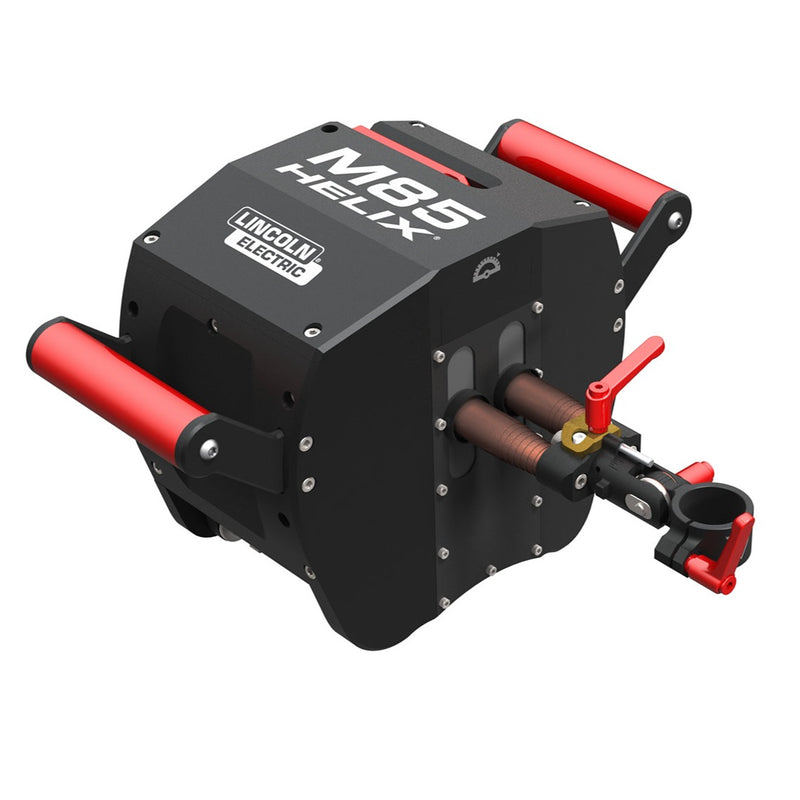

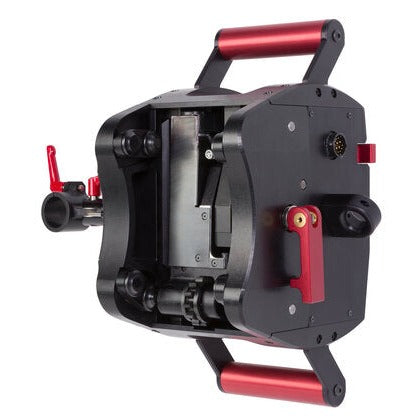

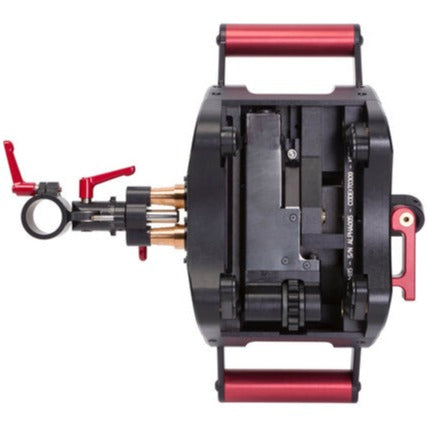

Lincoln Electric K52101-1 Helix M85 Weld Head - Reconditioned with 1 Year Operational Warranty


The HELIX M85 weld head is a cutting-edge, versatile, and user-friendly orbital and linear welding solution that seamlessly integrates digital capabilities with an ergonomic design, making it suitable for a wide range of welding processes, from FCAW to Hot Wire Laser welding. Built around the advanced multi-process capabilities of the Power Wave® equipment, the HELIX M85 weld head is designed to adapt to evolving welding processes and grow with your needs, thanks to its digital nature that allows for major upgrades with minimal technical expertise. The weld head's streamlined design, with all motors and harnesses packaged inside, reduces visual confusion and highlights human touch points in red for easy adjustments, while the patented track ring enables a single person to mount and dismount the weld head effortlessly, thanks to its lightweight construction and intelligent mechanical features that automatically adjust for different track ring diameters – all while maintaining the rugged and reliable performance expected from Lincoln Electric's welding experts.

  • Product Name: HELIX M85 Weld Head
  • Product Number: K52101-1
  • Input Power: 24V DC
  • Input Current: 9A Max
  • Travel Speed ipm (mm): 0.1 min-120 max (2.54 min-3048 max)
  • Clearance - in (mm): Radial: 8.5 (215.9), Axial: 19.75 (501.7)
  • Oscillation Stroke in. (mm): 2.00 (50.8)
  • Motorized Height Control Stroke in (mm): 2.00 (50.8)
  • Lead/Lag Torch Tilt:  In 360°, Out: 60°
  • Dimensions (H x W x D) in (mm): 8.33 x 14.25 x 6.85 (211.6 x 362.0 x 174.0)

Product Information

Disclaimer This is a reconditioned product and is in full operational condition. Photo may not represent the actual product which may or may not contain some cosmetic blemishes that do not interfere with functionality. These units have been repainted and the manufacturer's logo may or may not be visible. GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. The buyer shall have fifteen (15) days from the date of delivery to accept product. We offer a 1-year operational warranty on all reconditioned equipment.
