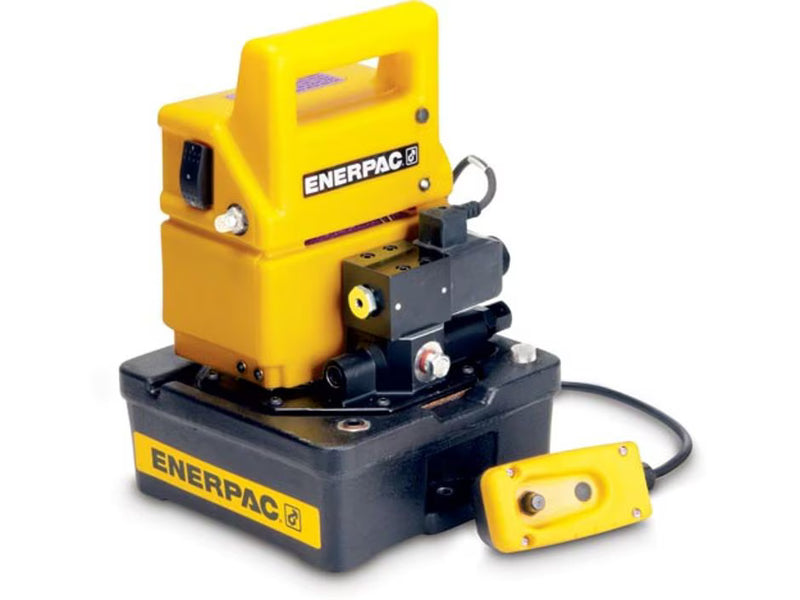

Enerpac PUD1100B Electric Hydraulic Pump, 115V, 2-Speed - Reconditioned
The Enerpac PUD1100B is a two-speed electric hydraulic pump designed for use with single-acting cylinders. Compact and portable, it's ideal for intermittent duty applications like punching or lifting, and comes equipped with a remote pendant for safe and efficient operation.
Features
- Two-speed operation for improved cycle times
- 115 VAC universal motor runs on low voltage
- Remote pendant control with 10 ft (3 m) cord
- Starts under full load
- Durable molded shroud with integrated handle
- Lightweight and portable design
- Ideal for use with small to medium hydraulic tools
Included
- 1x Enerpac PUD1100B Pump
Specifications
| Maximum Operating Pressure | 10,000 psi (700 bar) |
|---|---|
| 1st Stage Pressure | 200 psi (13 bar) |
| 2nd Stage Pressure | 10,000 psi (700 bar) |
| Flow Rate (1st Stage) | 200 in³/min (3.31 l/min) |
| Flow Rate (2nd Stage) | 20 in³/min (0.32 l/min) |
| Usable Oil Capacity | 0.5 gal (1.9 liters) |
| Reservoir Capacity | 116 in³ (1900 cm³) |
| Motor | 0.5 hp, 115 V, 50/60 Hz |
| Current Draw | 9.5 amps |
| Sound Level | 85 dBa |
| Duty Cycle | Intermittent |
| Valve Function | Advance / Retract |
Dimensions
| Height | 14.25 in |
|---|---|
| Length | 9.62 in |
| Width | 9.62 in |
| Weight | 26 lbs |
This is a reconditioned product and is in full operational condition. Photo may not represent the actual product which may or may not contain some cosmetic blemishes that do not interfere with functionality. We offer a 90-day operational warranty on all reconditioned equipment. These units have been repainted and the manufacturer's logo may or may not be visible.
GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. The buyer shall have fifteen (15) days from the date of delivery to accept product.
