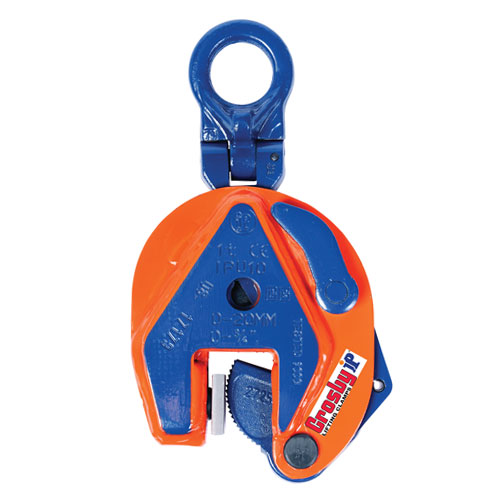

Crosby IPU10 Vertical Lifting Clamps Reconditioned

Crosby IPU10 Vertical Lifting Clamps Reconditioned w/ 1 Year Operational Warranty

Description

Universal Lifting Clamps – for lifting in any direction

Available in capacities of .5 thru 30 metric tons (Higher Working Load Limits are available upon request).

Wide variety of jaw openings available: 0” to 6.1”.

Welded alloy steel body for strength and smaller size. Forged alloy components, where required.

Individually Proof Tested to 2 times the Working Load Limit with certification.

Company name (CrosbyIP), logo, Working Load Limit and jaw opening permanently stamped on body.

Each product is individually serialized, with the serial number and Proof Load test date stamped on body. User manual with test certificate is included with each clamp

Available in a variety of styles:

IPU10– Standard clamp for materials with a surface hardness to 363HV10 (345 HB).

Full 180° turning range for material transfer, turning or moving.

Lock open, lock closed ability with latch for pretension on material and then release of material.

Optional IP-5000 Stinger assembly available (see page 428). Allows for easy connection between the clamp and hoist hook.

For use with materials with a surface hardness to 279HV10. Only 5% minimum WLL is needed.

Maintenance and repair kits are available.

Manufactured by an ISO 9001 facility.

All sizes are RFID EQUIPPED.

Minimum WLL is 5% of maximum WLL for .5t IPU10 only.

Minimum WLL is 10% of maximum WLL for all other IPU10, IPU10J, IPU10S, IPU10H clamps.

* Design Factor based on EN 13155 and ASME B30.20. Model IPU10R (remote control opening and closing via a cable) on request. Model IPU10W (wedge) available on request.
