Condux WDR505 Hydraulic Underground Pulling Trailer 10k lb with Air Compressor - Reconditioned
Condux | Condux ARS505

Condux WDR505 Hydraulic Underground Pulling Trailer 10k lb with Air Compressor - Reconditioned

$176,039   $252,959 Save $76,920
Low Stock (1)
American Express Apple Pay Discover Mastercard PayPal Shop Pay Visa

Recommended Products

Greenlee 651 Hook Cable Sheave 12 in. - Reconditioned
Greenlee 651

Greenlee 651 Hook Cable Sheave 12 in.

$381.00
$505.00 Save $124
Greenlee 8012 Hook Sheave 12 in. - Reconditioned
Greenlee 8012

Greenlee 8012 Hook Sheave 12 in.

$422.00
$601.00 Save $179
current tools 9548 cable-roller
Current Tools 9548

Current Tools 9548 Four Sided Cable Roller and Clamp Recondtioned

$347.00
$531.00 Save $184
Current Tools 424 Hook Type Cable Sheave - Reconditioned
Current Tools 424

Current Tools 424 Hook Type 24in. Cable Sheave with 4000lb Capacity - Reconditioned

$672.00
$1,112.00 Save $440
Greenlee 653 24 inch Hook Type Cable Sheave Assembly 4000lbs Capacity
Greenlee 653

Greenlee 653 Hook Sheave 24in. Diameter with 4000lb Capacity

$884.00
$1,266.00 Save $382
Greenlee 441-4 4" Feeding Sheave - Remanufactured - General Equipment & Supply
Greenlee 441-4

Greenlee 441-4 Feeding Sheave 4 in.

$551.00
$787.00 Save $236
iToolco RJ6K Real Jacks with 6000lb Capacity for 22in. to 66in. Wire Spools - Reconditioned
iTool RJ6K

iToolco RJ6K Real Jacks Pair with 6000lb Capacity for 22in. to 66in. Wire Spools

$1,224.00
$1,750.00 Save $526
Greenlee 8024 Hook Type Cable Sheave 24in. with 8000lb Capacity
Greenlee 8024

Greenlee 8024 Hook Sheave 24 in.

$1,040.00
$1,470.00 Save $430
Ships In 5 - 9 Business Days

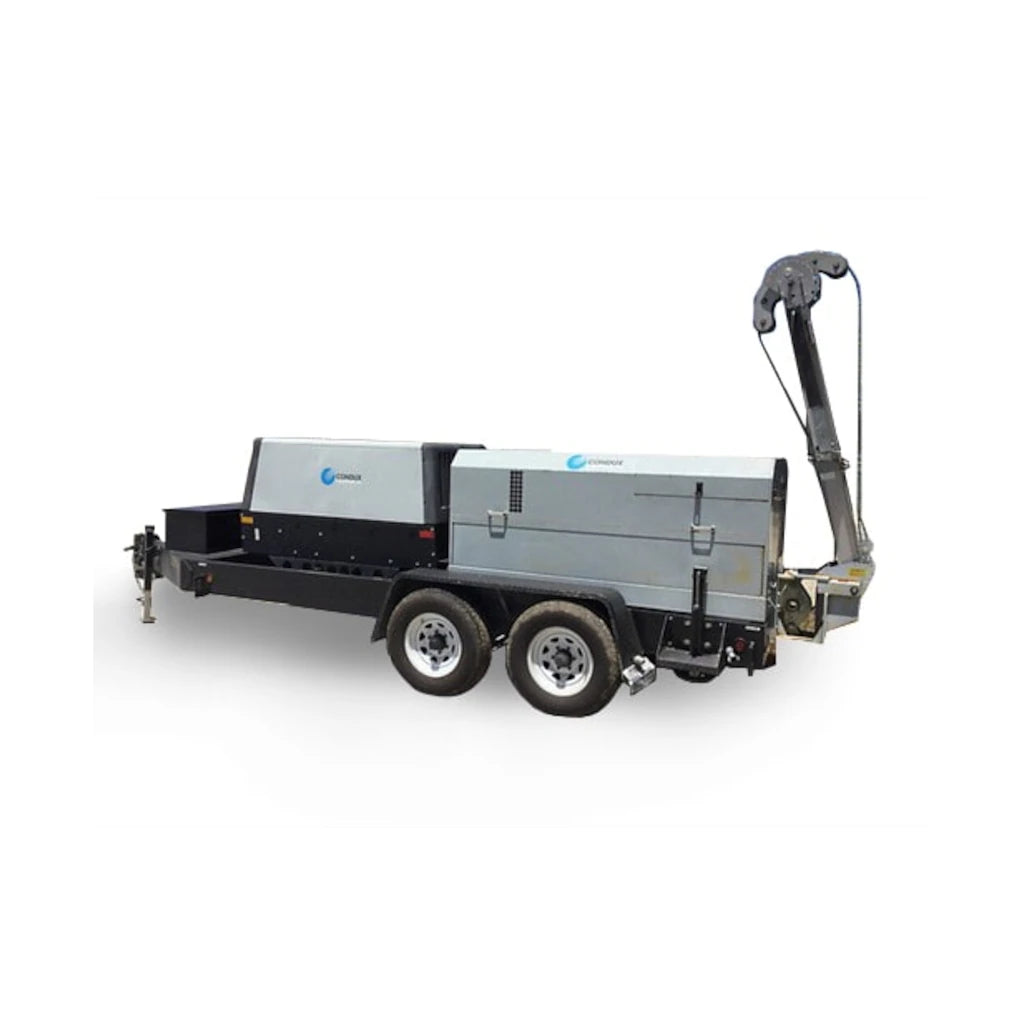

Condux WDR505 Hydraulic Underground Pulling Trailer

The Condux ARS505 Hydraulic Underground Pulling Trailer delivers up to 10,000 lbs of pulling force for underground cable installations. It is fully self-contained and designed for easy transport between jobsites. Equipped with anti-twist rope, modular extension arms, and an advanced electronic monitoring system, this unit ensures efficient and reliable cable pulling operations.

Features

  • 10,000 lb continuous pulling capacity
  • Hydraulic-driven twin capstan bullwheels
  • Variable speed hydraulic winch
  • Onboard compressor
  • Front and rear leveling jacks
  • Advanced electronic monitoring system (optional)

Specifications

Max Intermittent Pull 50 kN (11,240 lb)
Continuous Pull 40 kN (8,990 lb)
Speed at Continuous Pull 1 km/h (55 ft/min)
Max Speed 4.5 km/h (246 ft/min)
Pull at Max Speed 10 kN (2,250 lb)
Bull-wheel Diameter 350 mm (13 25/32 in)
Rope Diameter 14 mm (9/16 in)
Diesel Engine 34 kW (46 HP) - 2800 rpm - Water-cooled
Electric System 12V
Reel Capacity 700 m (2,300 ft) of 14 mm (9/16 in) rope
Transmission Closed hydraulic circuit with hydraulic oil cooling
Safety Brake Negative and self-acting
Meter Counter Digital (with optional DLR100)

Dimensions

Length 2,300 mm (91 in)
Width 1,280 mm (50 in)
Height 1,520 mm (60 in)
Dry Mass (Without Rope) 1,400 kg (3,080 lb)
Documents
Condux ARS505 Manua
Disclaimer

This is a reconditioned product and is in full operational condition. Photo may not represent the actual product which may or may not contain some cosmetic blemishes that do not interfere with functionality. We offer a 90-day operational warranty on all reconditioned equipment. These units have been repainted and the manufacturer's logo may or may not be visible.

GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. The buyer shall have fifteen (15) days from the date of delivery to accept product.
