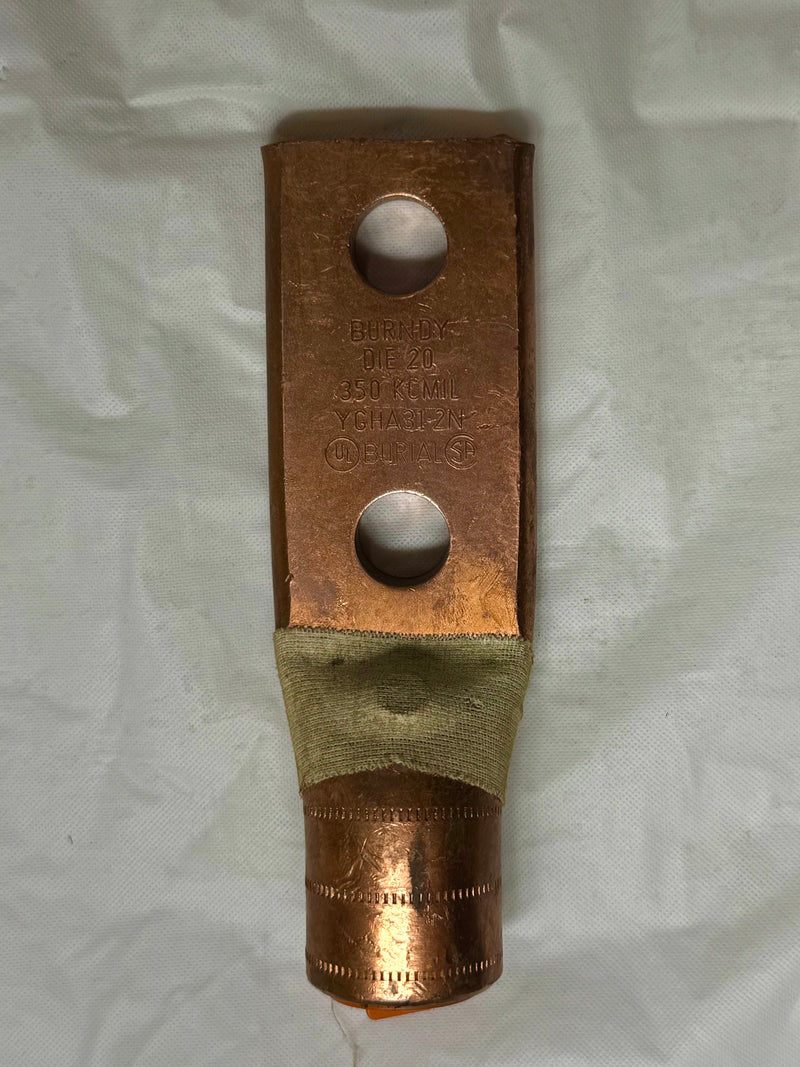

Burndy YGHA31-2N Copper Compression Grounding Lug, 350 kcmil, 2-Hole, 1/2" Stud - New Surplus
Heavy-duty 2-hole copper compression grounding lug with inspection probe hole, suitable for direct burial in earth or concrete. UL467 and UL486A listed for grounding applications. Designed for 350 kcmil copper conductors with short barrel and irreversible crimping.
Features
- Acceptable for direct burial in earth or concrete
- Includes inspection probe hole for visual cable confirmation
- UL467 and UL486A-486B listed
- Heavy-duty irreversible compression design
- RoHS compliant
- 2 crimp points required for proper installation
Included
- 1x Burndy YGHA31-2N Compression Lug
Specifications
| Conductor Size | 350 kcmil Copper |
|---|---|
| Stud Size | 1/2" |
| Hole Spacing | 1-3/4" |
| Crimps Required | 2 |
| Tongue Angle | Straight |
| Compliance | UL467, UL486A-486B, RoHS, IEEE 837 |
Dimensions
| Overall Length | 3.00 in |
|---|---|
| Pad Width | 1.62 in |
| Hole Diameter | 0.56 in (14 mm) |
| Z-Dimension | 0.62 in |
