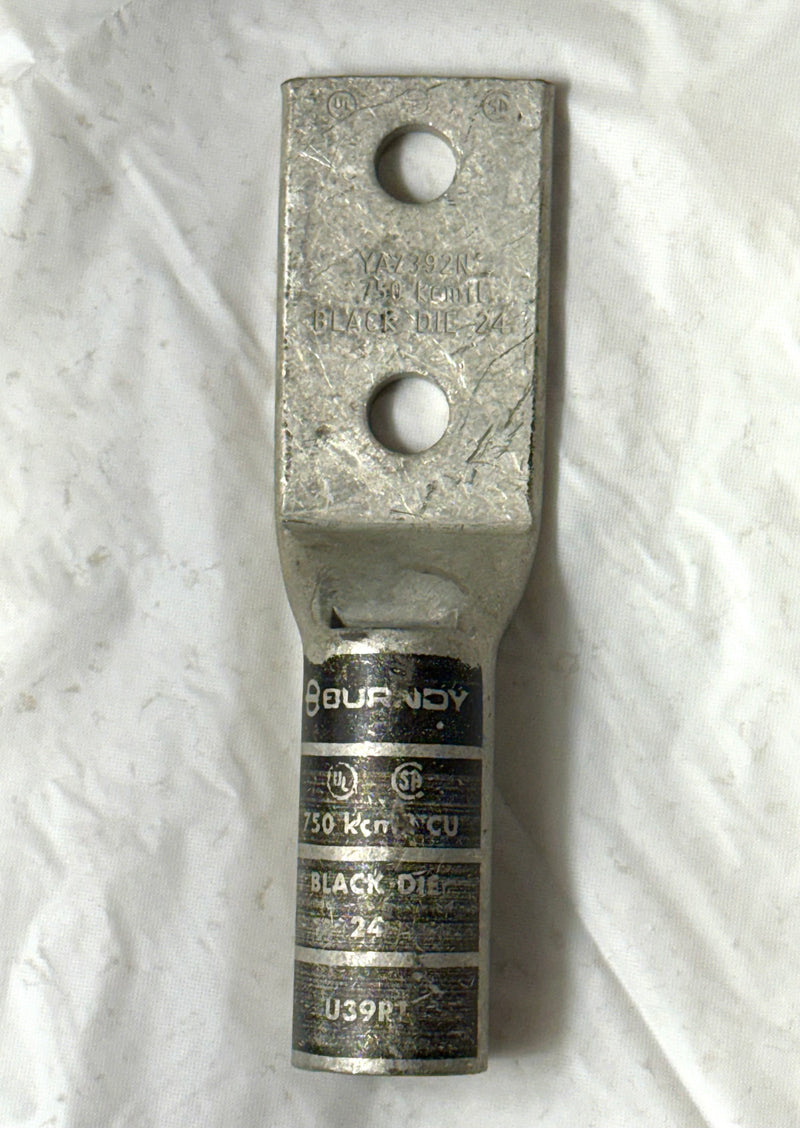

Burndy YAZ392N – 750 kcmil 2‑Hole Long Barrel Compression Lug - New Surplus
New surplus Burndy YAZ392N copper compression lug for 750 kcmil conductors. Features a long, skived barrel with inspection window, tin-plated finish, and 1/2″ stud holes spaced 1‑3/4″ apart. UL listed for up to 35 kV applications.
Features
- Internal chamfer on barrel ensures smooth wire insertion
- Inspection window for visual confirmation of wire insertion
- Electro-tin plated for corrosion resistance and reduced galvanic action
- Clearly marked with die index and color code
- Long, skived barrel allows multiple crimps for better conductivity
Included
- 1x Burndy YAZ392N connector
Specifications
| Catalog Number | YAZ392N |
|---|---|
| Conductor Size | 750 kcmil Copper |
| Stud Size | 1/2″ |
| Hole Spacing | 1‑3/4″ |
| Die Code | 24 |
| Voltage Rating | 600 V – 35 kV |
| Temperature Rating | 90 °C (194 °F) |
| Finish | Tin-Plated |
| Barrel Type | Long, Skived with Inspection Window |
| Tool Compatibility | Y35, Y750, Y46, Y81KFT, PAT81KFT-18V, dieless tools (U39RT) |
Dimensions
| Length (Overall) | 6.82″ in |
|---|---|
| Tongue Width | 1.91″ in |
| Height | 1.5″ in |
Buyer understands that the Goods described herein are new surplus by persons other than GES. GES is not obligated to do any repair work or modifications upon the Goods prior to sale or delivery. Any modifications performed by GES on the Goods prior to sale shall be performed as a result of the sole request of Buyer using designs and instructions provided by Buyer.
GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. Buyer shall have fifteen (15) days from the date of delivery to accept product.
