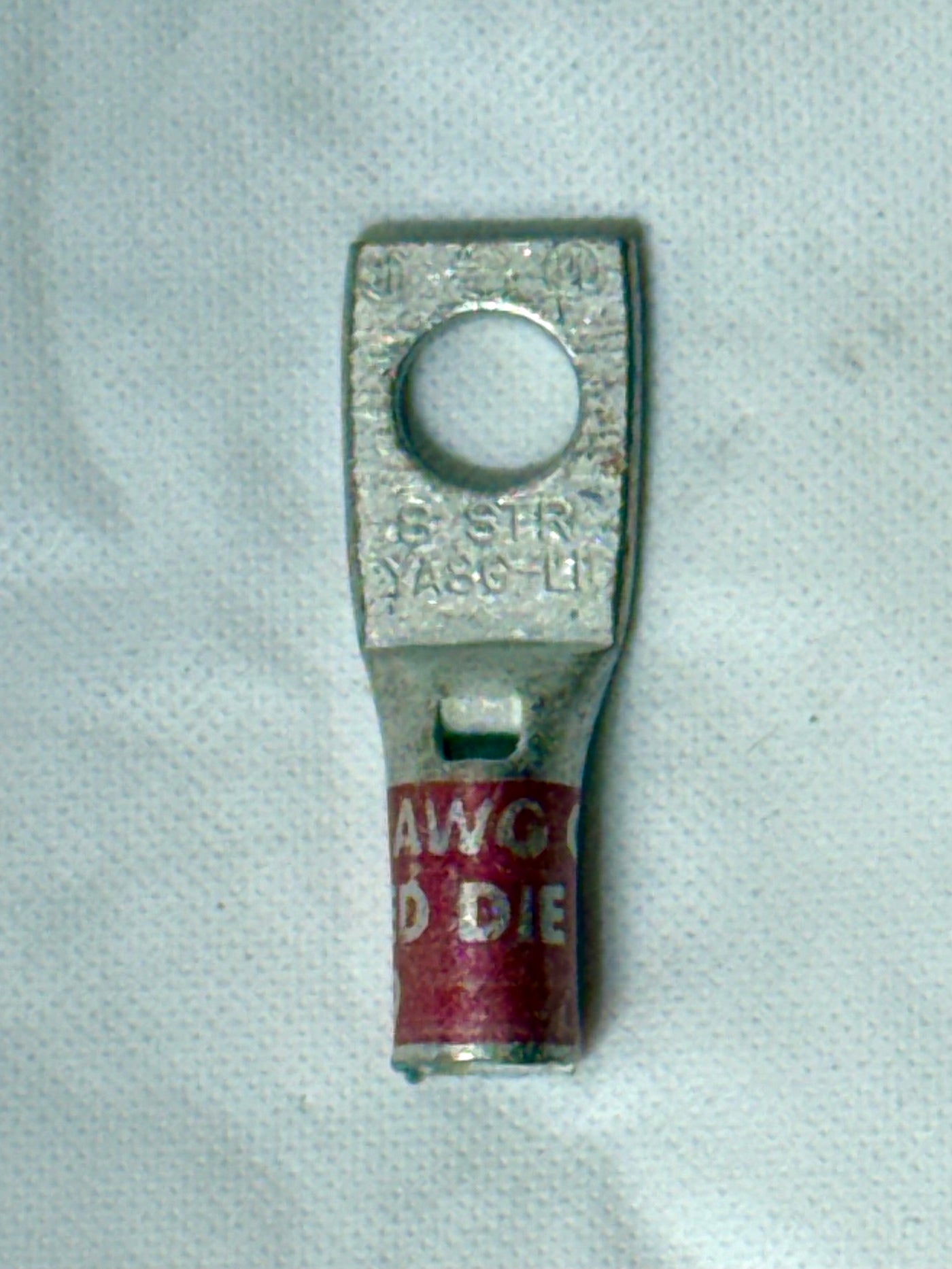

Burndy YA8CL1BOX Copper Compression Lug - 50pk - New Surplus
The Burndy YA8CL1BOX copper compression lug is designed for 8 AWG wire with a 1/4" stud. It features a standard barrel, inspection window, and internal chamfer for reliable crimping and corrosion resistance in up to 35kV wire termination applications.
Features
- 8 AWG copper conductor compatibility
- 1/4" stud size with standard barrel
- Internal chamfer for smooth wire insertion
- Inspection window for proper crimp alignment
- Electro-tin plated for corrosion resistance
- Die index 49, red color code
Included

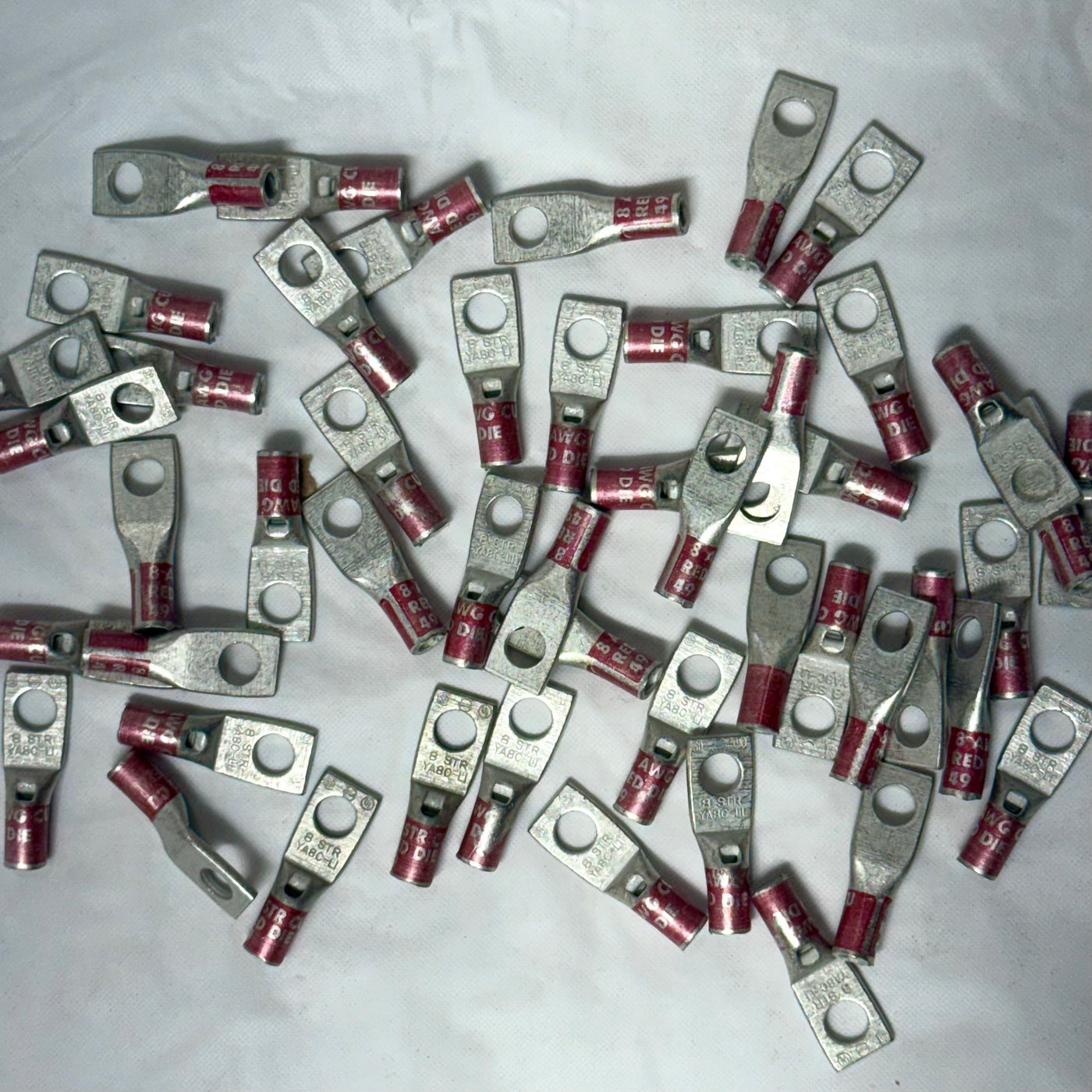

- 50x Burndy YA8CL1BOX Copper Compression Lugs
Specifications
| Type | Standard Barrel, Tin Plated |
|---|---|
| Conductor Size | 8 AWG |
| Stud Size | 1/4" |
| Material | Copper |
| Voltage Rating | 35 kV |
| Plating | Tin |
| Color Code | Red |
| Compliance | UL 486A-486B, RoHS, BABA |
Dimensions
| Stud Size | 1/4 in |
|---|---|
| Pad Width | 0.44 in |
| Outside Diameter | 0.27 in |
| Strip Length | 7/16 in |
| Z Dimension | 0.33 in |
Buyer understands that the Goods described herein are new surplus by persons other than GES. GES is not obligated to do any repair work or modifications upon the Goods prior to sale or delivery. Any modifications performed by GES on the Goods prior to sale shall be performed as a result of the sole request of Buyer using designs and instructions provided by Buyer.
GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. Buyer shall have fifteen (15) days from the date of delivery to accept product.
