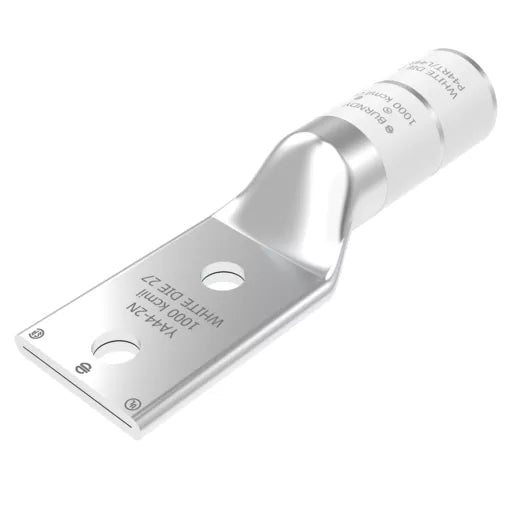

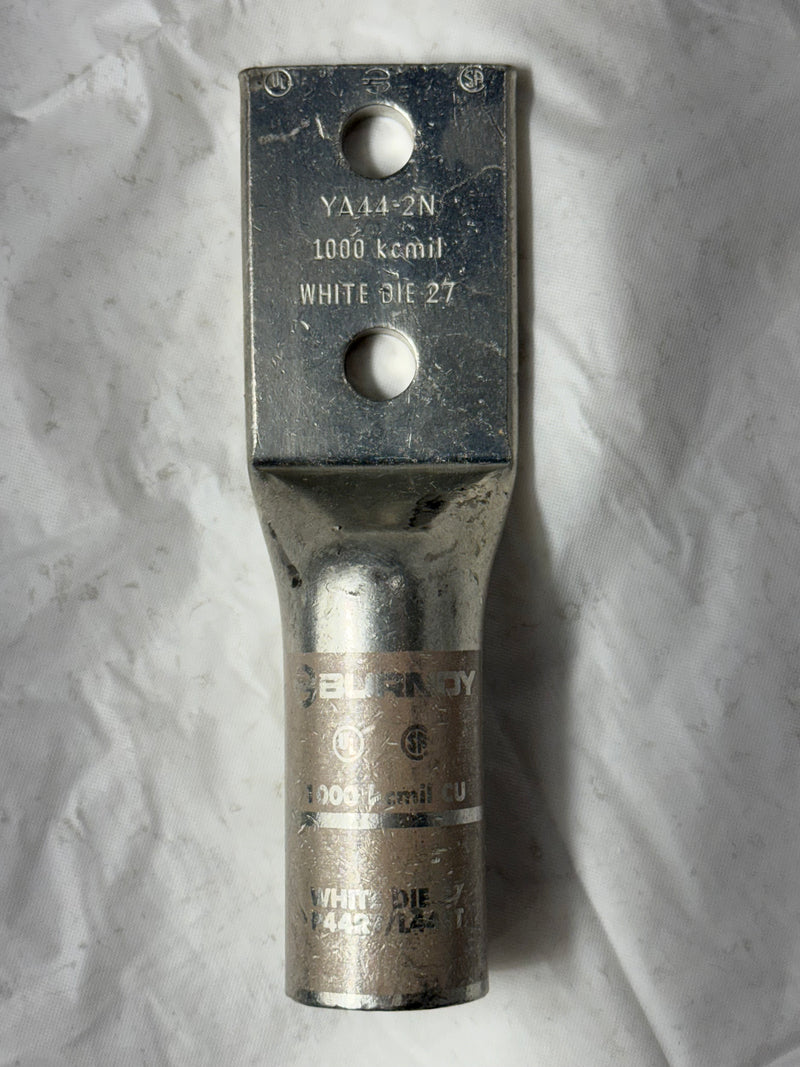

Burndy YA442N – 1000 kcmil CU 2‑Hole Long Barrel Lug - New Surplus
New surplus Burndy YA442N copper compression lug for wire termination, 1000 kcmil, two-hole, long chamfered barrel, tin‑plated, UL/CSA rated up to 35 kV, color‑coded white, die index 27.
Features
- Internal chamfer on barrel enables smooth wire insertion, protecting strands
- Long barrel length supports multiple crimps, enhancing mechanical strength
- Electro‑tin plating reduces galvanic corrosion and resists contaminants
- Clearly marked with stamping and barrel color coding
- Two‑hole design prevents rotation
Included
- 1x Burndy YA442N connector
Specifications
| Catalog Number | YA442N |
|---|---|
| Conductor Size | 1000 kcmil Copper |
| Stud Size | 1/2″ |
| Hole Spacing | 1‑3/4″ |
| Die Index | 27 |
| Voltage Rating | Up to 35 kV |
| Temperature Rating | 194 °F (90 °C) |
| Compliance | UL 486A‑B Listed, RoHS, Buy America, TAA |
| Finish | Tin‑Plated Copper |
Dimensions
| Length (Overall) | 7.14″ (18.14 cm) |
|---|---|
| Width (Pad) | 2.19″ (5.56 cm) |
| Height | 1.5″ (3.81 cm) |
Buyer understands that the Goods described herein are new surplus by persons other than GES. GES is not obligated to do any repair work or modifications upon the Goods prior to sale or delivery. Any modifications performed by GES on the Goods prior to sale shall be performed as a result of the sole request of Buyer using designs and instructions provided by Buyer.
GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. Buyer shall have fifteen (15) days from the date of delivery to accept product.
