by Appleton
New Surplus
Appleton EYSEF300 Sealing Unilet - New Surplus
Appleton EYSEF300 Sealing Unilet - New Surplus
Ready to Ship Next Business Day
Shipping Weight: 15.0 lb
Low stock: 7 left
Online Sales & Support
Contact support@gequip.com or call 864.256.6174 for any questions or concerns.
Product Description
Appleton EYSEF300 Sealing Unilet - New Surplus
Description:

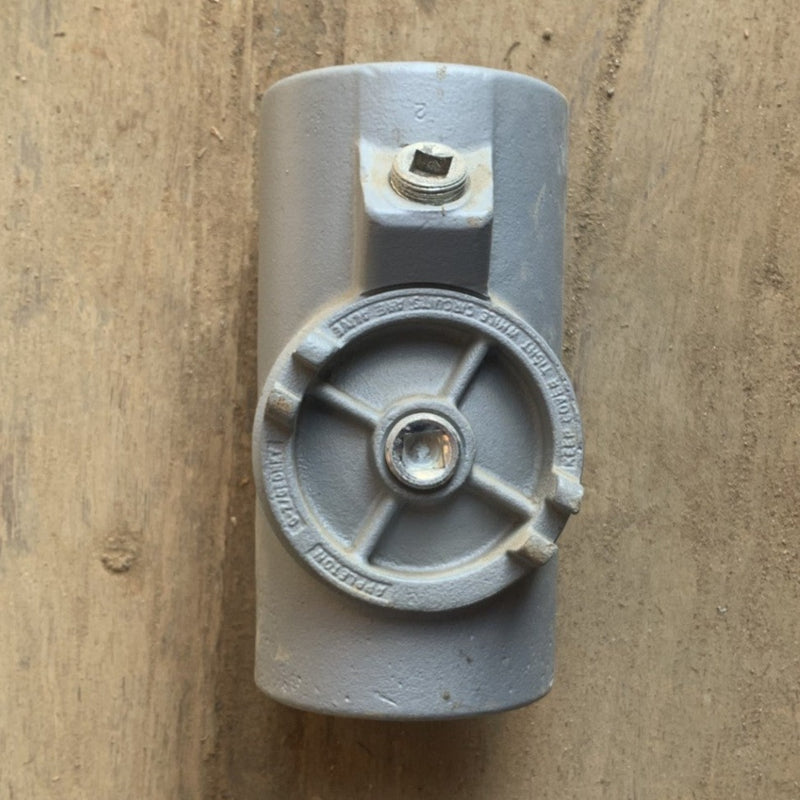

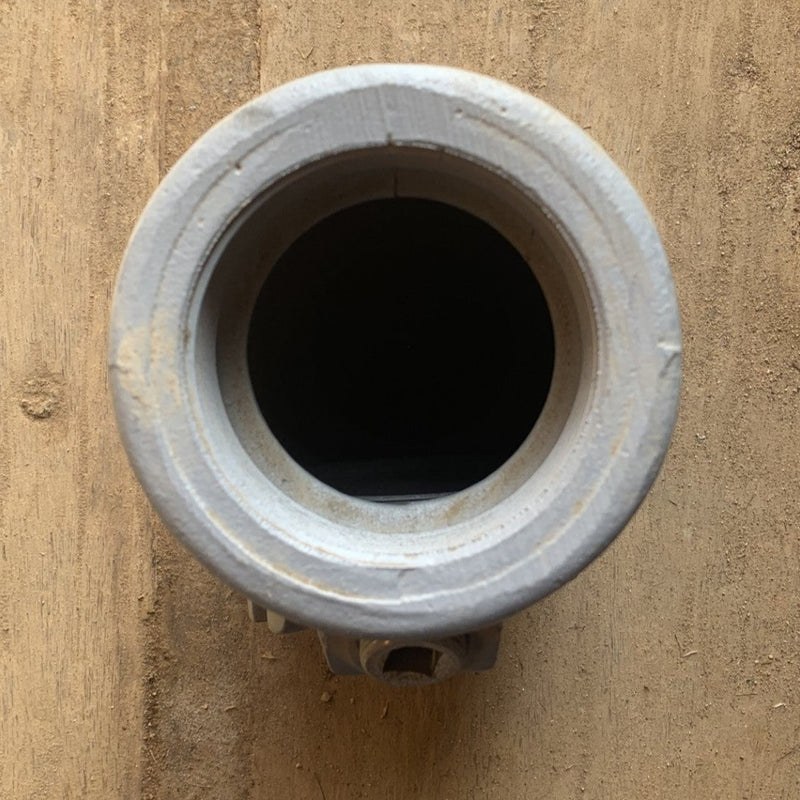

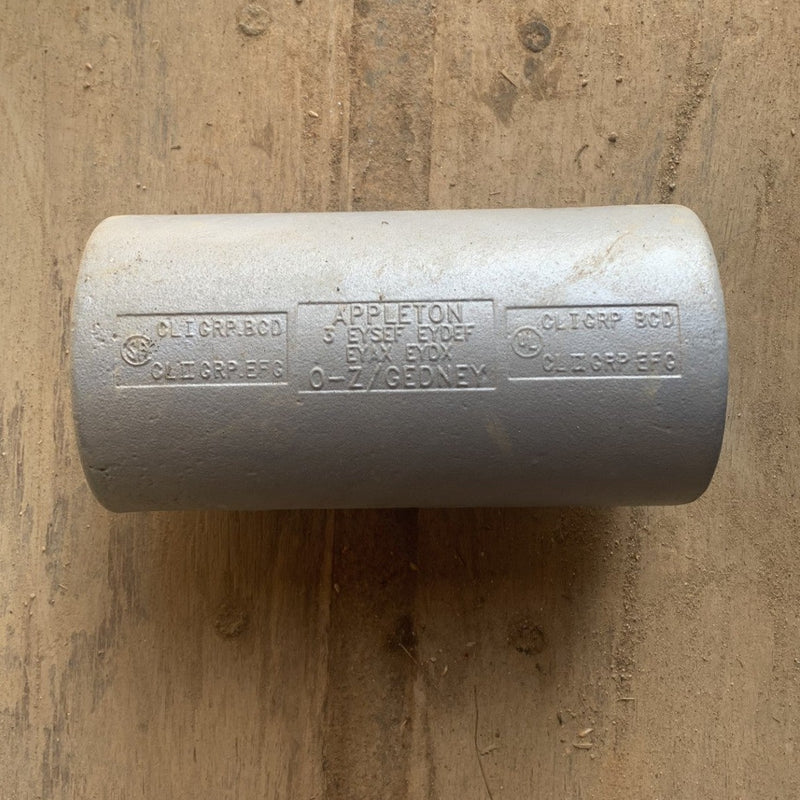

The Appleton Electric EYSEF300 is a 3-inch malleable iron explosionproof conduit sealing fitting from the Unilet EYSEF model series, designed for vertical and horizontal mounting in hazardous locations classified as Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, and Class III, with UL approval. It features female threaded connections, a turning radius of 3.31 inches, and is used to seal vertical conduits, prevent pressure piling within the conduit system, and provide a boundary where the conduit leaves the classified location. The fitting has a triple-coat finish (zinc electroplate, chromate, and epoxy powder coat), measures 9.19 inches in length and 4-3/4 inches in width, and complies with UL 886 (1203), UL File Number E10444, CSA C22.2 NO. 30, and CSA 065181 standards for use with threaded rigid metal conduit and IMC.
