WIDOS 3511 Plastic Welding Machine - Reconditioned

Name: General Equipment and Supply
Address: 3423 Fork Shoals Rd, Simpsonville, SC, 29680, US
Telephone: +1-800-800-6011

Reconditioned

$6,499.00

~~$9,493.00~~ Save $2,994

Low

Lead time:8 - 10 business days

Quantity

Ships in 8 - 10 business days

Description

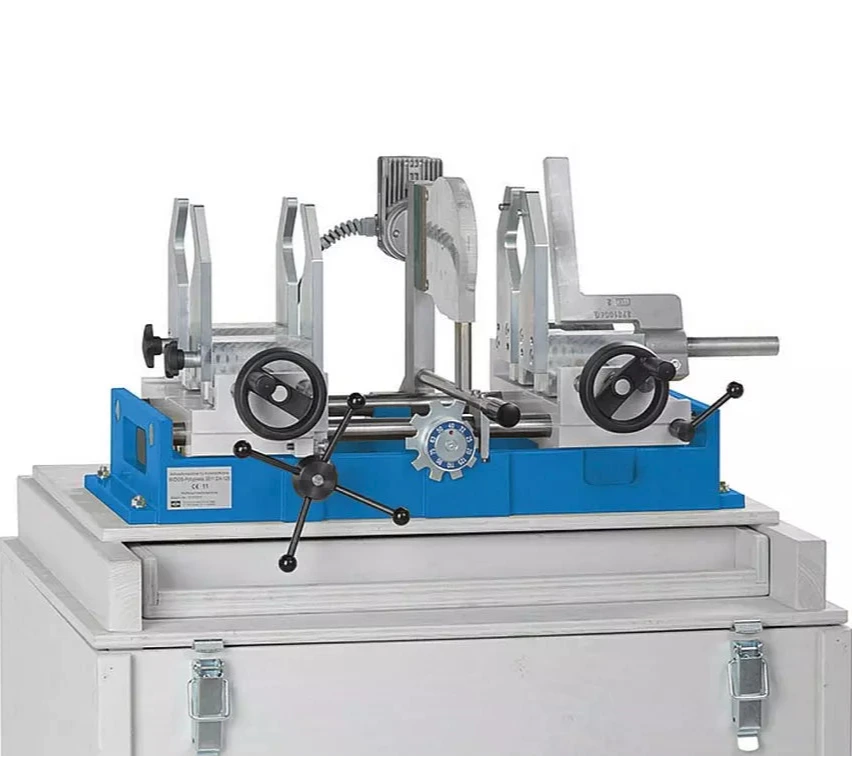

WIDOS 3511 Plastic Welding Machine – Reconditioned

The WIDOS 3511 is a German-built socket fusion welding machine for butt-welding thermoplastic pipes such as PE, PP, and PVDF. This 2020 model has been reconditioned, tested, and is ready for industrial use. Machine is sold as pictured – includes the attached clamping system and heating plate only. Inserts and optional large welding device for sizes above 63 mm are not included.

Features

Designed for socket fusion welding of PE, PP, and PVDF pipes
Pipe OD capacity: 20–125 mm (up to 150 mm with optional tooling)
Manual/pressure operation with stable clamping system
Reconditioned 2020 model, tested for full functionality
Rugged steel and aluminum construction
Single-phase 110 V, 60 Hz operation

Included

WIDOS 3511 base unit
Attached clamping system
Attached heating plate

Specifications

Brand	WIDOS
Model	3511
MPN	3750110US
Voltage	110 V
Current	10 A
Frequency	60 Hz
Pipe Diameter Range	20–125 mm (up to 150 mm with optional tooling)
Year Built	2020
Serial Number	G0320068

Dimensions

Length	44 in
Width	30 in
Height	30 in
Weight	103 lbs (47 kg)

Disclaimer

This is a reconditioned product and is in full operational condition. Photo may not represent the actual product which may or may not contain some cosmetic blemishes that do not interfere with functionality. We offer a 90-day operational warranty on all reconditioned equipment. These units have been repainted and the manufacturer's logo may or may not be visible. GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. The buyer shall have fifteen (15) days from the date of delivery to accept product.
