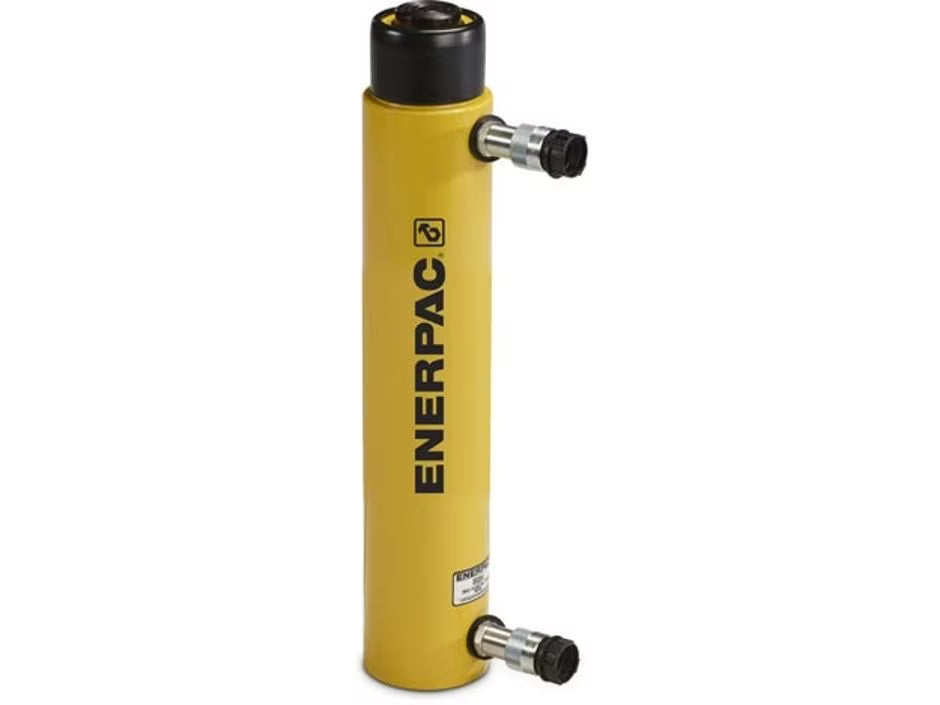

The Enerpac RR3014 is a general-purpose, double-acting hydraulic cylinder designed for rugged industrial applications requiring fast retraction and reliable performance. With a 32.5 ton advance capacity and 14.5-inch stroke, it's ideal for high-cycle use in demanding environments like construction and manufacturing.
| Capacity (Advance) | 32.5 tons (295 kN) |
|---|---|
| Capacity (Retract) | 6 tons |
| Stroke | 14.5 in (368 mm) |
| Plunger Type | Solid |
| Return Type | Double-Acting, Hydraulic |
| Operating Pressure | 10,000 psi (700 bar) |
| Material | Steel |
| Surface Treatment | Painted (Enamel) |
| Coupler | CR400 |
| Collapsed Height (A) | 21.63 in (549 mm) |
|---|---|
| Extended Height (B) | 36.13 in (917 mm) |
| Outside Diameter (D) | 4 in (101 mm) |
| Cylinder Bore Diameter (E) | 2.88 in (73.2 mm) |
| Plunger Diameter (F) | 2.13 in (54.1 mm) |
| Weight | 64 lbs (29 kg) |
This is a reconditioned product and is in full operational condition. Photo may not represent the actual product which may or may not contain some cosmetic blemishes that do not interfere with functionality. We offer a 90-day operational warranty on all reconditioned equipment. These units have been repainted and the manufacturer's logo may or may not be visible. GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. The buyer shall have fifteen (15) days from the date of delivery to accept product.
