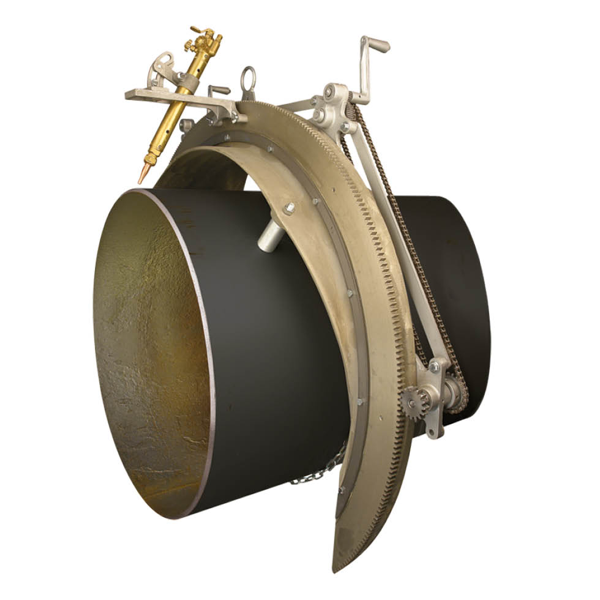

Mathey Dearman 6SA Manual Pipe Beveler 28" - 36" - Reconditioned

Name: General Equipment and Supply
Address: 3423 Fork Shoals Rd, Simpsonville, SC, 29680, US
Telephone: +1-800-800-6011

Reconditioned

$15,400.00

Low

Lead time:8 - 10 business days

Quantity

Ships in 8 - 10 business days

Description

Mathey Dearman 6SA Manual Pipe Beveler - 28" to 36" Pipe Range

Professional-grade manual saddle beveling machine designed for critical pipe applications requiring exceptional cut quality and accuracy. The industry-standard Mathey Dearman 6SA features hard anodized aluminum construction for over 80 years of proven reliability. Includes spacers, torch, and torch holder for immediate use on 28" through 36" diameter pipe in shop or field environments.

Features

Hard anodized aluminum saddle, ring gear, and cap ring for superior durability
Precision spacer bolts on both sides of saddle ensure critical accuracy
One-piece saddle design resists stress and warping
Up to 80% faster than hand cutting and grinding
Compatible with oxy/fuel or plasma torches with 1 3/8 in barrel diameter
Minimal operator training required for accurate setup
Portable and lightweight for shop or field applications
Smooth rounded integral bushing protects conductor insulation
Accurately tapped tapered threads for tight, rigid joints
Form 35 design for maximum cutting accuracy

Included

6SA base machine
Torch holder
Torch
Spacer bolts for 28 in, 30 in, 36 in pipe

Specifications

Model	6SA
Pipe Size Range	28 in - 36 in (711 mm - 914 mm)
Cutting Speed	35 ipm (inches per minute)
Machine Type	Manual saddle machine
Saddle Material	Hard anodized aluminum alloy
Ring Gear Material	Hard anodized aluminum alloy
Torch Compatibility	Oxy/fuel or plasma with 1 3/8 in (35 mm) barrel
Included Spacer Sizes	28 in, 30 in, 36 in
Application	Construction, fabrication, welding jobsites
Setup Time	5 minutes or less
Accuracy	Precision spacer bolts ensure critical accuracy
Finish	Hard anodized

Dimensions

Overall Width	57 in (1448 mm)
Overall Height	43 in (1092 mm)
Overall Depth	18 in (457 mm)
Net Weight	180 lbs (82 kg)
Shipping Weight	295 lbs (134 kg)

Disclaimer

This is a reconditioned product and is in full operational condition. Photo may not represent the actual product which may or may not contain some cosmetic blemishes that do not interfere with functionality. We offer a 90-day operational warranty on all reconditioned equipment. These units have been repainted and the manufacturer's logo may or may not be visible. GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. The buyer shall have fifteen (15) days from the date of delivery to accept product.
