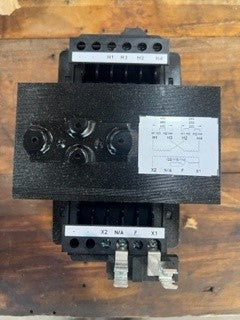

Siemens MT0750A Control Transformer 240V AC/480V AC

Siemens MT0750A Control Transformer 240V AC/480V AC

Ships Next Day

Shipping Weight: 32.0 lb

$476.71 USD
$560.84 USD $476.71 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Online Sales & Support

Contact support@gequip.com or call 864.256.6174 for any questions or concerns.

Product Description

Siemens MT0750A Control Transformer 240V AC/480V AC, 120V AC-New Surplus

Ready To Ship Next Business Day

Brand-SIEMENS
Item - Transformer Control Transformer
Input Voltage - Transformer 240V AC; 480V AC
Output Voltage - Transformer 120V AC
VA Rating - Transformer 250 VA
Protective Device Secondary Fuse
Enclosure Style - Transformer Open
Mounting - Transformer Foot
Phase - Electrical 1
Hz - Electrical 60 Hz
Temp. Rise 55 °C
Enclosure Finish Epoxy Resin Varnish
Height 3.81 in
Depth 4.36 in
Width 4.5 in
Specifications:
  • Epoxy encapsulated (50 to 750 VA), epoxy resin impregnated (1 to 5 kVA)
  • Completely seals the transformer coils against moisture, dust, dirt and industrial contaminants for maximum protection in hostile and industrial environments
  • Fuse clips (most models), factory mounted for integral fusing on the secondary side to save panel space, save wiring time and save the cost of buying an add-on fuse block or kit
  • Integrally molded barriers, between terminals and transformer, protect against electrical creepage, up to 30% greater terminal contact area permits low loss connections, extra deep barriers reduce the chance of shorts from frayed leads or careless wiring
  • Terminals, molded into the transformer, are difficult to break during wiring, a full quarter-inch of thread on the #10-32 terminal screws prevents stripping and pullout
  • Jumpers supplied, two jumper links are standard with all transformers which can be wired for dual primary voltages
  • Laminations are built with silicon steel to minimize core losses and to increase optimum performance and efficiency
  • Insulation materials are of the highest rating available for the temperature class
  • Robust design
  • 240/480, 230/460, 220/440 VAC primary voltage
  • 120/115/110 VAC secondary voltage
  • 0.29 A max at 240 VAC
