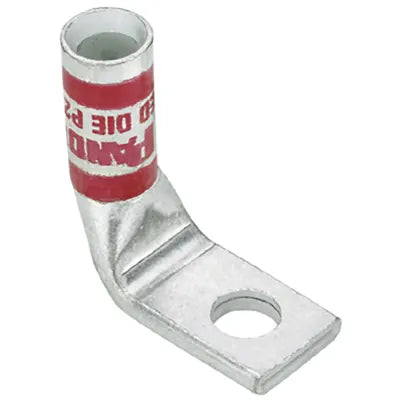

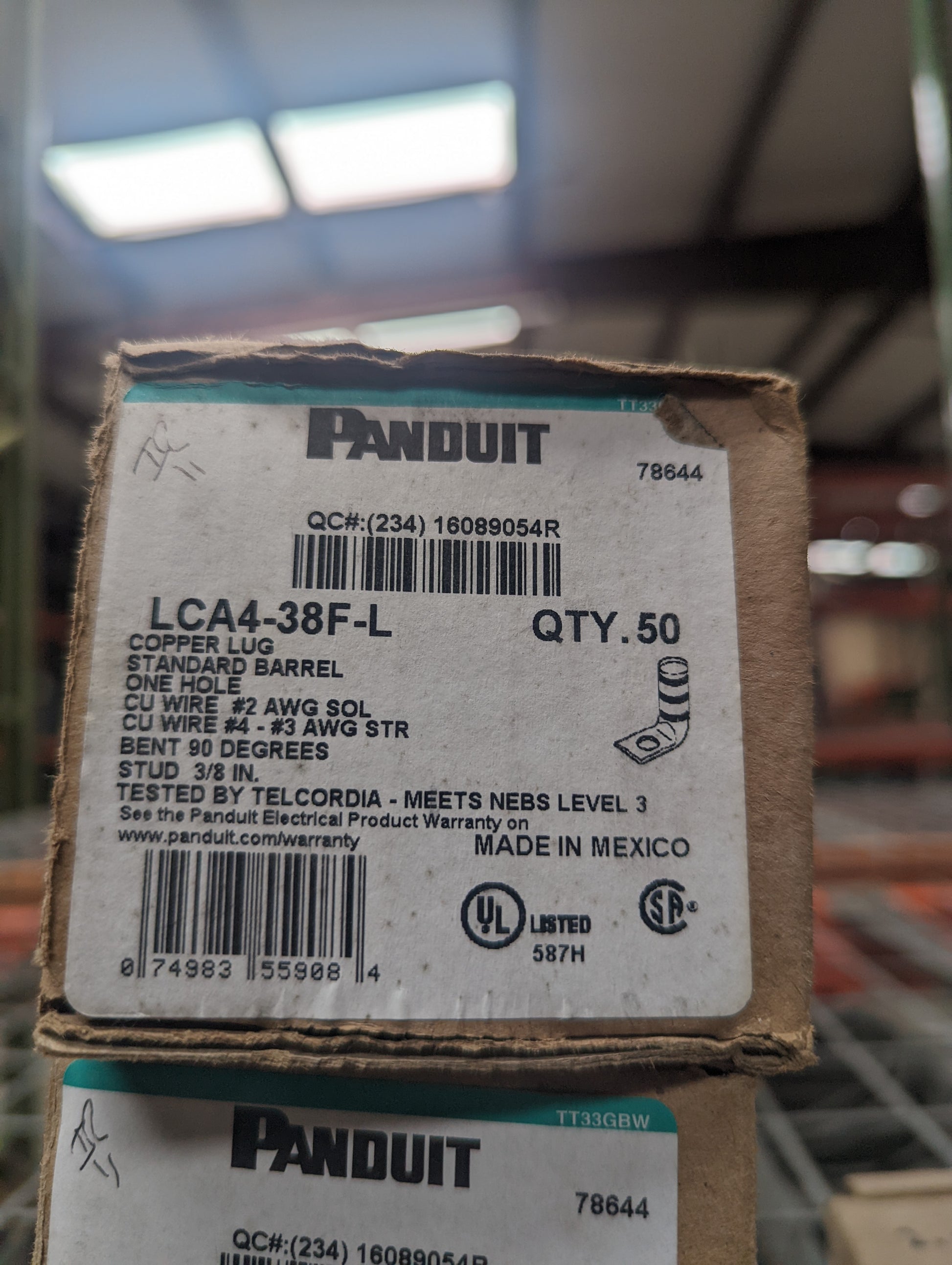

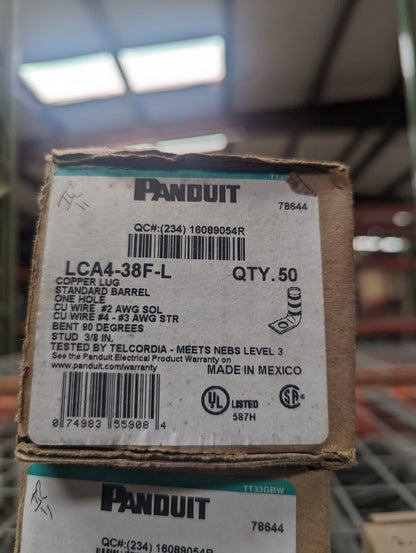

PANDUIT LCA4-38F-L | Tin-Plated Copper Compression Connectors - Lugs (50 PER BOX) NEW SURPLUS
READY TO SHIP NEXT BUSINESS DAY
DESCRIPTION
Panduit Compression Lug, 1-Hole, Series: LCA, Solid/Stranded Copper Conductor, 4 to 3 AWG, 2 AWG Conductor, Die Code: P29, 35 kV, 3/8 in Stud, 90 deg Tongue, 0.62 in W x 0.07 in THK Tongue, 1.34 in Overall Length, Standard/Inspection Window Barrel, 0.28 in ID x 0.38 in OD x 0.81 in L Barrel, 7/8 in L Wire Strip, Tin Plated, 90 deg C, 42.954 in Mounting Hole, Copper, Gray
PANDUIT LCA4-38F-L | TIN-PLATED COPPER COMPRESSION CONNECTORS - LUGS | UPC - 07498355908 KEY SPECS
Copper Conductor Size (AWG)
#2
Copper Conductor Size (kcmil)
67
Product Type
Tin-Plated Copper Compression Connectors - Lugs
Sub Brand
Pan-Lug
Stud Hole Size (In.)
42.95
Stud Hole Size (mm)
9.5
Barrel Type
Standard Barrel Length with Inspection Window
Barrel Length (In.)
0.81
Barrel Length (mm)
20.6
Tongue Type
Standard
Tongue Width (In.)
0.62
Tongue Width (mm)
15.7
Tongue Angle
90°
Tongue Thickness (In.)
0.07
Tongue Thickness (mm)
1.8
Overall Length (In.)
1.34
Overall Length (mm)
34
Standards Met
C22.2 No. 65-13, 486A-486B File #E52164
Color Code
Gray
Panduit Die Index Number
P29
Sold out
