Omega PX615-5KG1

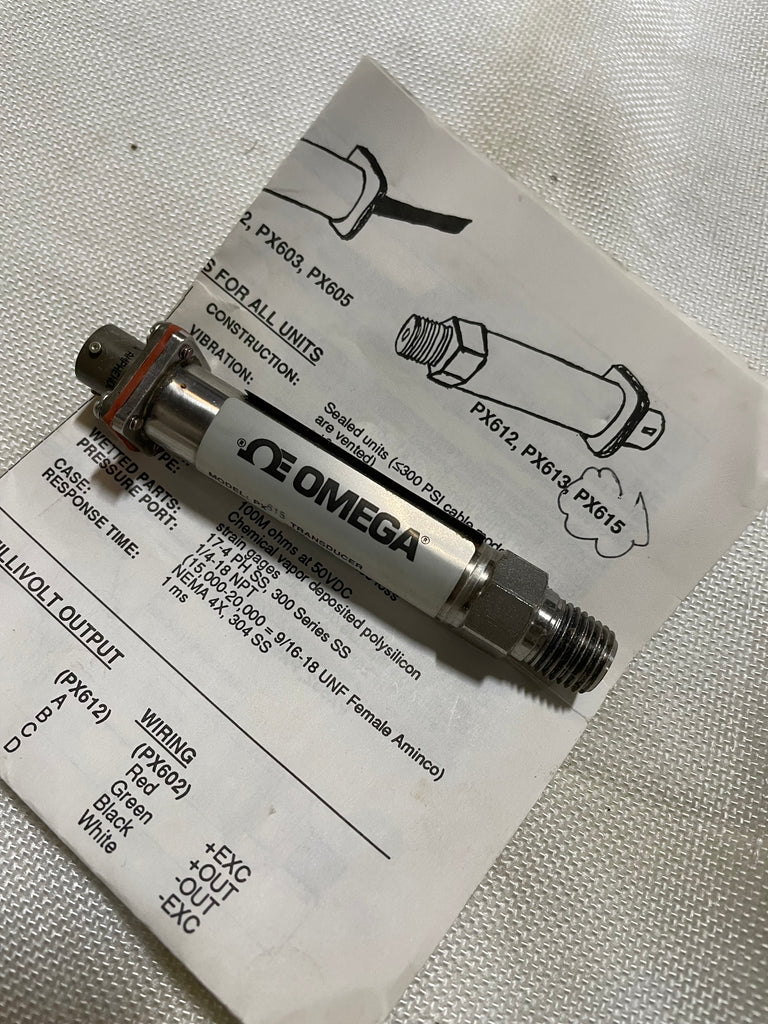

Omega PX615-5KG1 General Purpose Pressure Transducers with Adjustable Zero & Span - New Surplus
$500.50 USD
SAVE $1,501.51
Ships Next Day
* Shipping Calculated at Checkout
Low stock: 1 left
Regular price
$500.50 USD
Regular price
$2,002.01 USD
Sale price
$500.50 USD
Unit price
per
Shipping calculated at checkout.
Product Description
Omega PX615-5KG1 General Purpose Pressure Transducers with Adjustable Zero & Span-New Surplus
Ready To Ship. Next Business Day
- Excellent Long Term Stability
- All Stainless Steel Construction
- NEMA 4 Cable or Connector Models
- 0.4% Accuracy
SPECIFICATIONS
| Excitation: | 10 to 36 Vdc unregulated |
| Output: |
PX603/PX613 Series: 1 to 5 Vdc (3 wire) PX605/PX615 Series: 4 to 20 mA (2 wire) |
| Supply Current: | <3.0 mA |
| Insulation Resistance: | 100 MΩ @ 50 V |
| Accuracy: | ±0.4% BFSL (Includes non-linearity, hysteresis and non-repeatability errors) ±1.0% Terminal Point Method Includes non-linearity, hysteresis, non-repeatability, zero offset and span setting errors |
| Hysteresis: | ±0.2% FS |
| Repeatability: | ±0.07% FS |
| Stability: | ±1.0%/year |
| Durability: | 100 million cycles |
| Operating Temperature: | -28 to 82°C (-20 to 180°F) |
| Compensated Temperature: | -28 to 71°C (-20 to 160°F) |
| Thermal Zero Effect: | ±0.04% FS/°F |
| Thermal Span Effect: | ±0.04% FS/°F |
| Proof Pressure: | 15 to 2000 psi = 200% FS 3000 to 5000 psi = 150% FS 7500 to 20,000 psi = 120% FS |
| Burst Pressure: | 15 to 2000 psi = 800% FS 3000 to 5000 psi = 300% FS 7500 to 20,000 psi = 150% FS |
| Gages: | Thin-film polysilicone |
| Diaphragm: | 17-4 PH stainless steel |
| Case: | 300 Series stainless steel |
| Pressure Connection: | 15 to 10,000 psi = ¼ NPT >10,000 psi = female Aminco fitting (9/16-18 UNF) |
| Electrical Connection: | 0.9 m (36') braided-shield PVC cable or connector |
| Mating Connector: | PT06F8-4S (not included) |
| Weight: | 128 g (4.5 oz) without cable |
| Response Time: | 5 ms |
| Construction: | Sealed units, except PX603 and PX605 ≤500 psi is vented to room |
