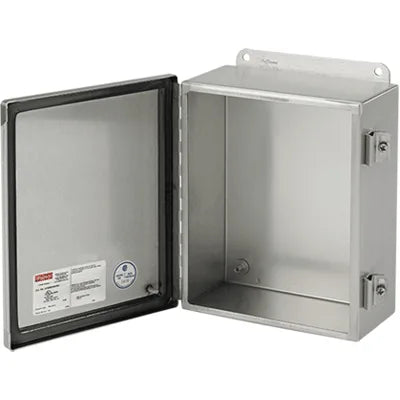

Hoffman A8064CHNFSS Enclosure: Screw-Down Clamps, 8 in Nominal Enclosure-New Surplus
Ready To Ship Next Business Day
Used in either indoor or outdoor applications, these enclosures combine a rugged continuous hinge, seamless foam-in-place gasket and stainless-steel screw-down clamps for a reliable seal that protects components from corrosive environments.
Specifications:
16- and 14-Gauge Type 304 or 316L Stainless Steel
Seams Continuously Welded and Ground Smooth
Seamless Foam-in-Place Gasket
Stainless Steel Screws and Clamps
Pull Stainless Steel Continuous Hinge Pin to Remove Door
Weld nuts Provided for Mounting Optional Panels and Terminal Block Kits
Bonding Provision on Door and Body
Dimensions
Width
6 in
Height
8 in
Depth
4 in
Nominal Enclosure Width
6 in
Width (In.)
6
Length
8.00 inch
Details
Material
304 Stainless Steel
NEMA Rating
3R, 4, 4X, 12
Color
Stainless Steel
Standards
CSA Certified, cUL, IEC, UL Listed
Finish
Brushed
Knockouts / No Knockouts
No Knockouts
Mounting
Wall
Enclosure Cover Type
Hinged
Item
Enclosure
Features
Weld Nuts for Mounting Panel and Terminals
IP Rating
66
Series
A51S
Gasket
Polyurethane
Item - Electrical Enclosure
Enclosure
Closure Method
Screw-Down Clamps
Metal Gauge
14/16 ga
Solid / Clear Cover
Solid
Knockouts
No
Sold out
