Donaldson Torit® put decades of industry experience to work to produce a new, best-in-class dust collector capable of reducing equipment size and number of required filters by up to 40% compared to a typical cartridge collector.

The Downflo® Evolution dust collector is a continuous duty, modular collector with cartridge-style filters. The downward airflow design delivers high filtration efficiency while using less energy. Continuous duty means the filters can be pulse cleaned on-line without interrupting airflow through the collector. The filters are pulse-cleaned in sequence, one set at a time, without turning the collector off. Each standard collector is two or three filter columns wide by two or three filter rows high by one filter deep. Designed to increase the versatility of the collector, standard options include abrasion-resistant inlets, extended dirty-air plenums, air management modules, and clean change options.

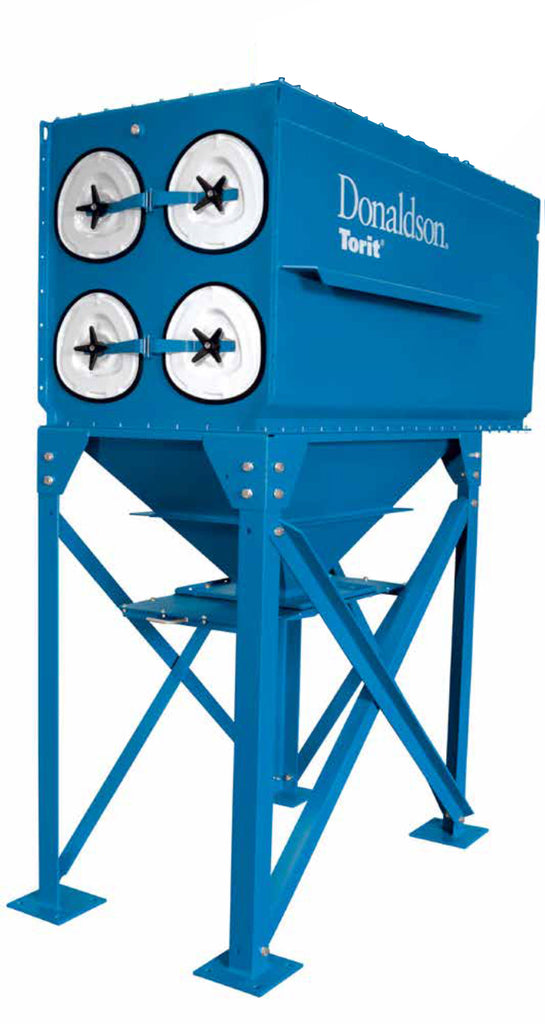

DFE 2-4 (Product Code AG8408302) includes:

• Standard legs and hopper to accommodate a 55-gallon drum.
• 55-gallon drum cover included (drum by others).
• Left and right-hand side outlet.
• Four (4) Ultra-Web Filters – 1016 sq. ft. filter media.
• Covered power hole for integral fan mounting ( fan is not included in pricing but is available depending upon horsepower required).
• 3 HP Fan motor with exhaust grill.
• Standard paint finish.
• Type 4 pulse control box w/ timer board and Magnehelic gauge (shipped loose).
• Sprinkler tap on the front face.
• The size of the unit is 110″ H x 48″ W x 75″ D with a 55-Gallon drum feature.
• 2,800 cfm (4,757m3 /h)

• Number of Filters	4
  Ultra-Web® Filter Area	1016 ft² 94.4 m²
  Number of Valves	4
  Inlet Size for 24 Inch (in) Dimension D	10 to 16 in
  Inlet Size for 36 Inch (in) Dimension D	17 to 24 in
  Inlet Size for 42 Inch (in) Dimension D	26 in 28 in 30 in 32 in
  Inlet Size for 48 Inch (in) Dimension D	34 in 36 in 38 in 40 in 42 in
  Approximate Shipping Weight	1890 lb 857 kg
  Operating Conditions
  Seismic Spectral Acceleration (Ss) Per International Building Code (IBC) 2009	1.5 g
  Seismic Spectral Acceleration (S1) Per International Building Code (IBC) 2009	0.6 g
  Basic Wind Speed and Exposure C Per International Building Code (IBC) 2009	90 mph 145 km/h
  Housing Rating	-25 to 10 inH2O -635 to 254 mmH2O
  Compressed Air Required	90 to 100 psi 6.2 to 6.9 bar
  Operating Temperature	150 ºF 66 ºC
  Housing Construction Material Thickness	3/16 in. (4.8 mm) to 10 Gauge
  Housing Construction Material	Steel
  Alternating Current (AC) Control Voltage	120 V
  Direct Current (DC) Control Voltage	24 V

Buyer understands that the Goods described herein are new surplus by persons other than GES. GES is not obligated to do any repair work or modifications upon the Goods prior to sale or delivery. Any modifications performed by GES on the Goods prior to sale shall be performed as a result of the sole request of Buyer using designs and instructions provided by Buyer. GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. Buyer shall have fifteen (15) days from the date of delivery to accept product.
